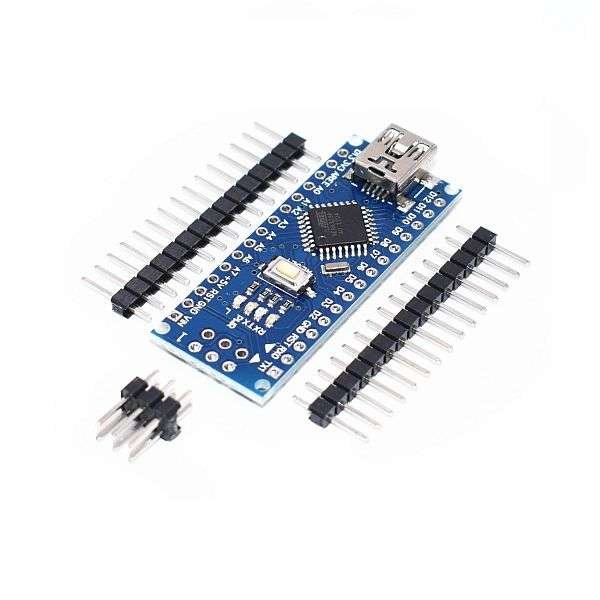

Nano Board unsoldered

DescriptionNano Board unsolderedNano built on the Atmega328P-AU MCU (16MHz) has a small size that can be used with the model board for solderless wiring (breadboard).The board uses the CH340G chip as the converter UART-USB. The Nano V3 can be powered via a miniUSB port (up to 500mA). The external power supply 6-12V does not regulate the output VIN or 5V external power supply regulation output 5V. The power supply automatically selects the maximum voltage value.Features :1 pair of TTL level serial transceiver ports RX / TXUsing Atmel Atmega328P-AU MCUThere is a bootloader installed in itSupport USB download and PowerSupport for external 5V ~ 12V DC power supplySupport power supply by 9V batterySupport ISP downloadAutomatic reset during program download.Power OK blue LED on the bottom.Green (TX), red (RX) and orange (L) LED. 5V to AREF jumper.Auto sensing/switching power input.Small mini-B USB for programming and serial monitor.ICSP header for direct program download.Standard 0.1” spacing DIP (breadboard friendly).Manual reset switch.Package Includes :1 x Nano Board R3 with CH340 chip without USB Cable compatible with Arduino (Unsoldered)
